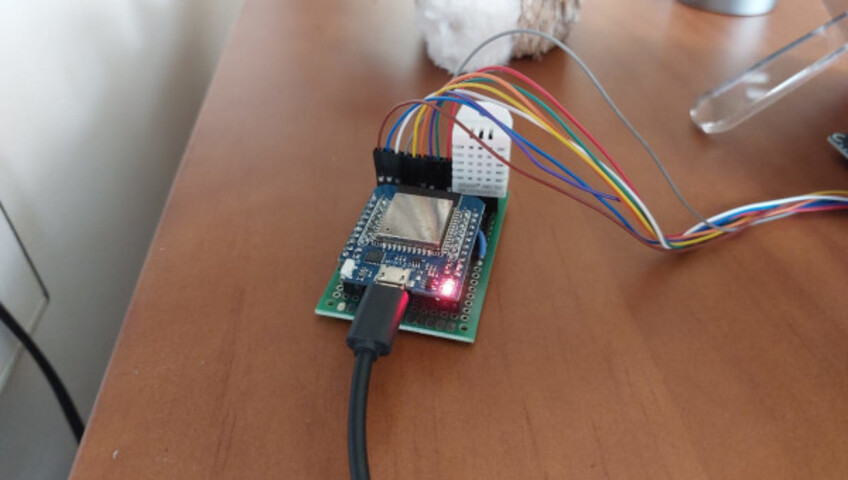

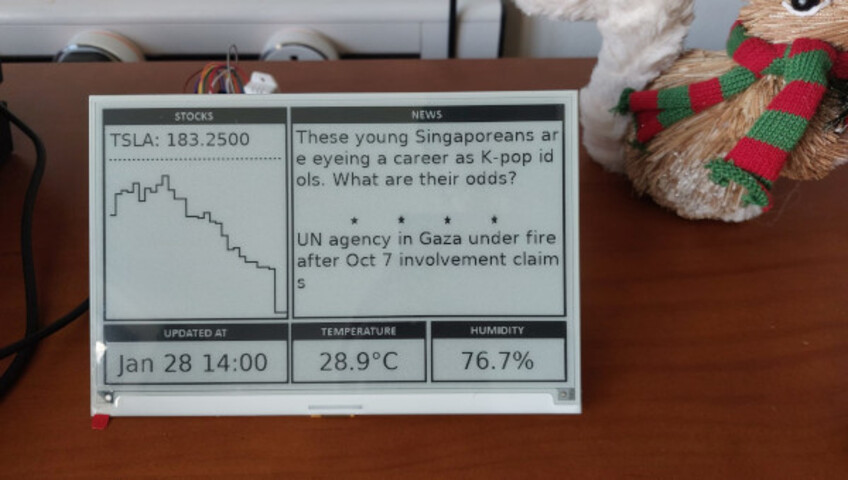

Repurposed e-reader into something for regular use. News, stocks, weather dashboard. ESP32 NodeMCU D1 + 7.5” Waveshare e-paper + DHT22 sensor.

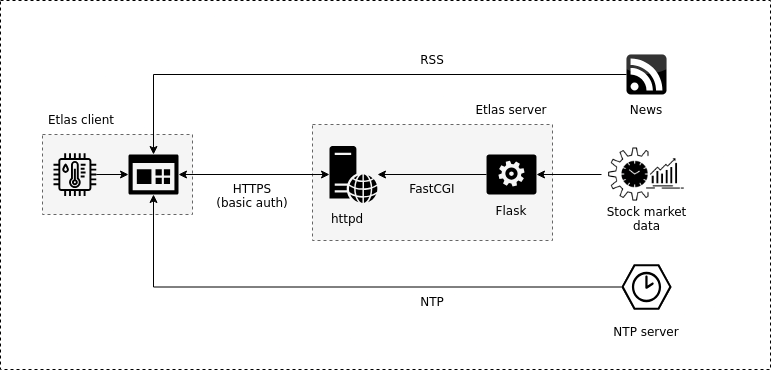

Stocks: Two weeks EOD data (max possible) from Polygon.io. Flask app on VPS manages watchlist, relays feed. Backend: httpd + htpasswd + slowcgi + Flask.

gui_plot_stocks() draws stepped graph. Was easier to implement, but the code is hideous—vTaskDelay() needed to prevent watchdog timer from triggering.

NOTE: Bresenham’s?

News: Channel NewsAsia RSS. MCU parses feed. Didn’t plan to have a backend at the time. Now that I have one for stocks, should relay feed for flexibility.

Weather: DHT22 single-wire protocol. 26µs/50µs/70µs pulses are too fast for standard ESP32 APIs. Bit-banged relative pulse widths (ported from ESP8266):

static inline int dht_await_pin_state(int state, int timeout)
{
    int t;
    static const uint16_t delta = 1;

    for (t = 0; t < timeout; t += delta) {
        ets_delay_us(delta);
        if (gpio_get_level(DHT_PIN) == state)
            return t;
    }
    return 0;
}

static inline int dht_get_raw_data(unsigned char buf[BUFLEN])
{
    int rc;
    unsigned char i, pwl, pwh;

    gpio_set_level(DHT_PIN, 0);
    ets_delay_us(1100);
    gpio_set_level(DHT_PIN, 1);

    if (!dht_await_pin_state(0, 40)) {
        rc = 1;
        xQueueSend(dht_evt_queue, &rc, (TickType_t) 0);
        return 0;
    }
    if (!dht_await_pin_state(1, 80)) {
        rc = 2;
        xQueueSend(dht_evt_queue, &rc, (TickType_t) 0);
        return 0;
    }
    if (!dht_await_pin_state(0, 80)) {
        rc = 3;
        xQueueSend(dht_evt_queue, &rc, (TickType_t) 0);
        return 0;
    }

    for (i = 0; i < BUFLEN; i++) {
        if (!(pwl = dht_await_pin_state(1, 50))) {
            rc = 4;
            xQueueSend(dht_evt_queue, &rc, (TickType_t) 0);
            return 0;
        }
        if (!(pwh = dht_await_pin_state(0, 70))) {
            rc = 5;
            xQueueSend(dht_evt_queue, &rc, (TickType_t) 0);
            return 0;
        }
        buf[i] = pwh > pwl;
    }
    return 1;
}

epd_init() stalls intermittently on first refresh() after flash. Toggling delay values in refresh() resolves it. If the first refresh succeeds, system remains stable. Root cause unknown—suspect noisy supply due to powering display via MCU.
